Hand Geometry Technology
The HandPunch 2000 uses RSI’s field-proven hand geometry biometric technology. The terminal captures a three-dimensional image of the hand each time the employee punches. The hand’s size and the shape are used to verify their identity with unparalleled accuracy. No fingerprints or palm prints are utilized. Green and red lights notify the employee of the status of each punch. There’s no question any more; employees have to be there to punch. Two Programmable Data Management Keys could be programmed for IN and OUT entry.

The HandPunch 2000 is a hand scanner and has two user-definable data management keys that let you collect data as employees punch. Common uses include department transfers, tips collected, job codes, or pay codes. Multi-level data entry sequences may be defined.

You can also set the data management keys to allow employees to review their past punches. To reduce keystrokes, the keys can also be set to automatically enter data such as a frequently used department number or in/out status.
handpunch 2000

Communication Options
The HandPunch 2000 connects quickly to the time and attendance PC via a provided 50-foot RS-232 communications cable. An optional dial-up high speed modem is available for remote  sites.

Hand Geometry Technology

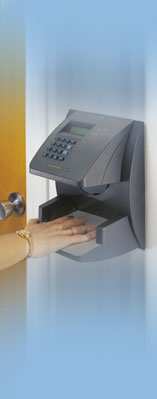

The HandPunch 3000 uses RSI’s field-proven hand geometry biometric technology. The terminal captures a three-dimensional image of the hand each time the employee punches. The hand’s size and the shape are used to verify their identity with unparalleled accuracy. No fingerprints or palm prints are utilized. Green and red lights notify the employee of the status of each punch. There’s no question any more; employees have to be there to punch.

Programmable Data Management Keys
The HandPunch 3000 is a hand identification device and has two user-definable data management keys that let you collect data as employees punch.
Common uses include department transfers, tips collected, job codes, or pay codes. Multi-level data entry sequences may be defined. You can also set the data management keys to allow employees to review their past punches. To reduce keystrokes, the keys can also be set to automatically enter data such as a frequently used department number or in/out status.

Communication Options
Whether your application calls for one terminal or thousands, the HandPunch 3000 can meet the need. Multiple terminals can be networked together at a site via RS-485 wiring. An optional Ethernet communications module or dial up modem are also available. Both options are internal to the terminal making installation fast and simple.

Edit-at-the-Clock Functions
The HandPunch 3000 allows supervisors to override user restrictions and to input such items as missed punches, planned vacations, and sick time at the terminal.  The password protected mode provides greater supervisor flexibility by lessening the need for computer edits. Audit trails documenting the use of these functions are generated to ensure security.

Bell Schedules
The bell schedule lets you program the day, time, and duration of a series of bells. The bells can be programmed to signal the beginning or end of a shift, lunch, or break.

Door Control
The HandPunch 3000 provides the capability to unlock and monitor a door. Global time zones may be used to restrict employee access.


Ten user-definable data management keys let you collect and/or display data as employees punch. Common data collection uses include department transfers, tips collected, job codes, or pay codes. The keys can also be defined to allow employees to review punches or find out about their schedules, vacation time accumulated, hours worked, and other programmed information. To reduce keystrokes, the keys can also be set to automatically enter data such as a frequently used department number or in/out status.

Other data management key features include:

•Employee messaging
•Review of employee information fields
•Validation tables to ensure proper data entry
•Restrict employee access to specific data management keys
•User defined prompts
•Multi-level input sequences definable per key
•Decision menus to minimize keystrokes

Schedules by Employee
Employee schedules may be downloaded to the HandPunch 4000 to restrict the times that an employee can punch. This can reduce unauthorized overtime as well as early “in” punches. A separate schedule can be defined for each employee providing the ultimate in flexibility. Built-in Bar Code Reader Some installations require the use of a badge. For these situations, the HandPunch 4000 includes an integrated bar code reader that can be used for ID number entry. The swipe-type reader supports the most popular bar code formats and allows for infrared badges.

Communications and Networking
Whether your needs are to network two terminals or thousands, the HandPunch 4000 can be configured to meet your needs. Standard RS-485 communications makes networking terminals easy and reliable. Options include an Ethernet Communications Module and a high speed internal modem for remote sites. Each unit also provides RS-232 serial printer support. Edit-at-the-Clock Functions
The system allows supervisors to override user restrictions and to input such items as missed punches, planned vacations, sick time, etc. The password-protected mode provides greater supervisor flexibility by lessening the need for computer edits. Audit trails are available to ensure security.

Bell Schedules
The bell schedule lets you program the day, time, and duration of a series of bells. The bells can be programmed to signal the beginning or end of a shift, lunch, or break.

Door Control
The HandPunch 4000 provides the capability to unlock and monitor a door. An employee’s individual schedule may be used to restrict access.

A Recognition Systems HandReader which is a biometric scanner is equipped with a MIFARE® smart card reader is the perfect match of industry leading biometrics and advanced card technology.

▪ User's template is stored on the card
▪ Unlimited users
▪ Simplified template management
▪ Dual factor authentication
▪ Seamless integration into existing access control and/or time & attendance systems

Smart cards look just like any other card, but contain both memory and a processor embedded within the card. Memory is divided into separate sectors that can be protected by individual software codes (keys), so multiple applications can be contained on a single card. Combining a HandReader with a smart card creates a powerful combination of security and portable template management. By employing the card as a storage device, users no longer need worry about complicated network wiring to resolve template distribution.

Operation
Both the users' ID number and biometric template are stored on the smart card and are protected by company specific codes (keys). Users simply put their card into a holster and then place their hand to verify that they are the owner of the card. This convenient holster allows for single hand operation. Upon successful verification, the reader will process the transaction.

Applications include: Access control, time & attendance, automatic fare collection, airline ticketing, electronic purse, loyalty programs, ID cards, university cards, vending machines, pay phones, parking control, prepaid metering, health care, etc.

MIFARE contactless smart card technology
MIFARE is an interface platform for contactless smart cards and readers according to the ISO 14443 A standard. It is a well-proven radio frequency (RF) communication technology for transmitting data between a card and a reader device.

The MIFARE 1Kbyte card can support up to 16 different applications; each with its own dedicated keys and memory area.
▪ Multi-application memory, fast transaction speed
▪ High security (mutual authentication and encryption)
▪ High reliability (no moving parts in reader)
▪ ISO operating frequency of 13.56 MHz
▪ ISO credit card size
▪ No battery in card
▪ Cards available through multiple sources

Ordering Information:
The MIFARE option can be ordered with the following RSI Products:
▪ HandKey II ▪ HandPunch 3000
▪ HandKey CR ▪ HandPunch 4000
